Viessmann Boiler Repair – Expert Guide for Homeowners in the Lower Mainland
As soon as your Viessmann boiler ceases to function properly, you are immediately affected. Your house begins to lose warmth, the supply of hot water becomes irregular, or you find yourself puzzled over an error code like F4 or FF with no clue as to its meaning. The solution that you are looking for is quick, safe and carried out by someone with an extensive knowledge of boiler repair

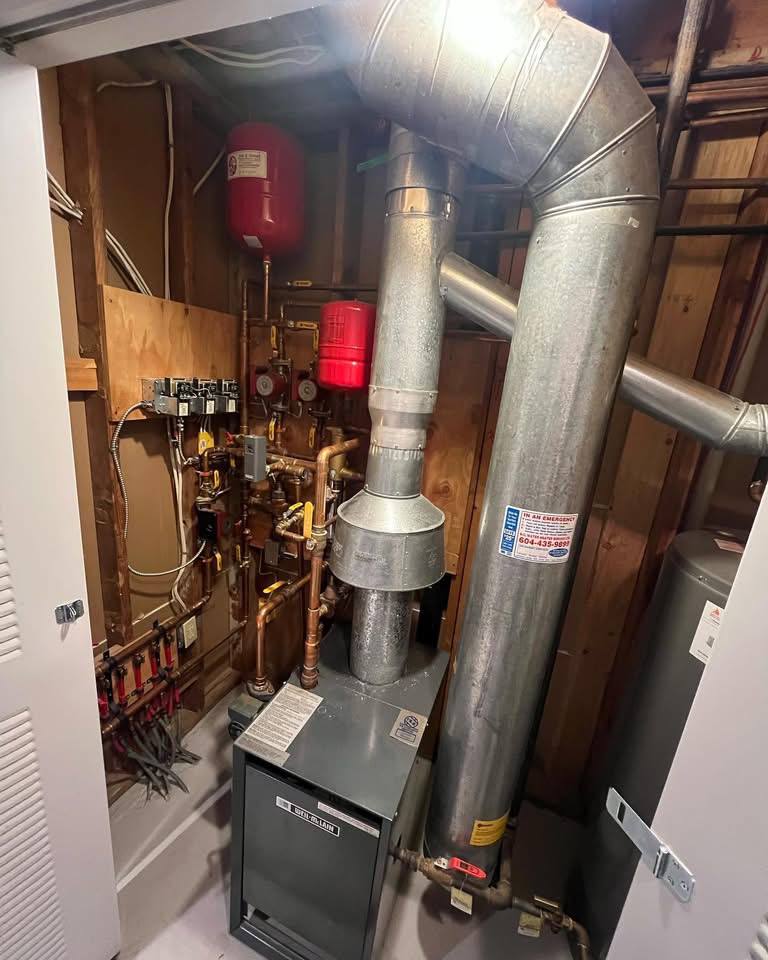

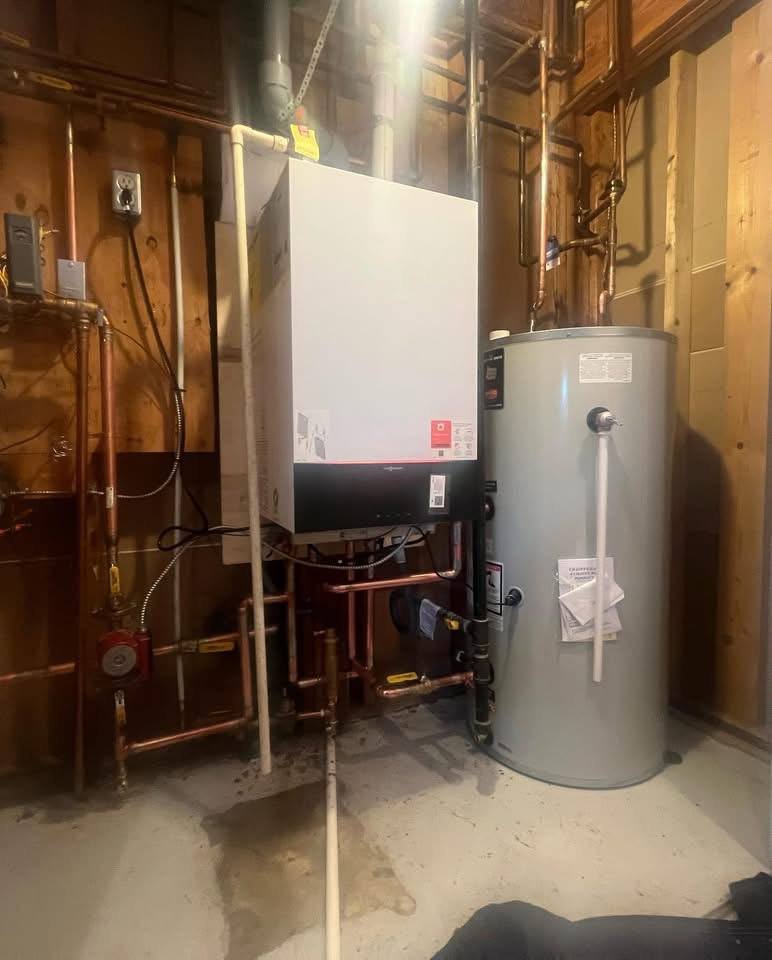

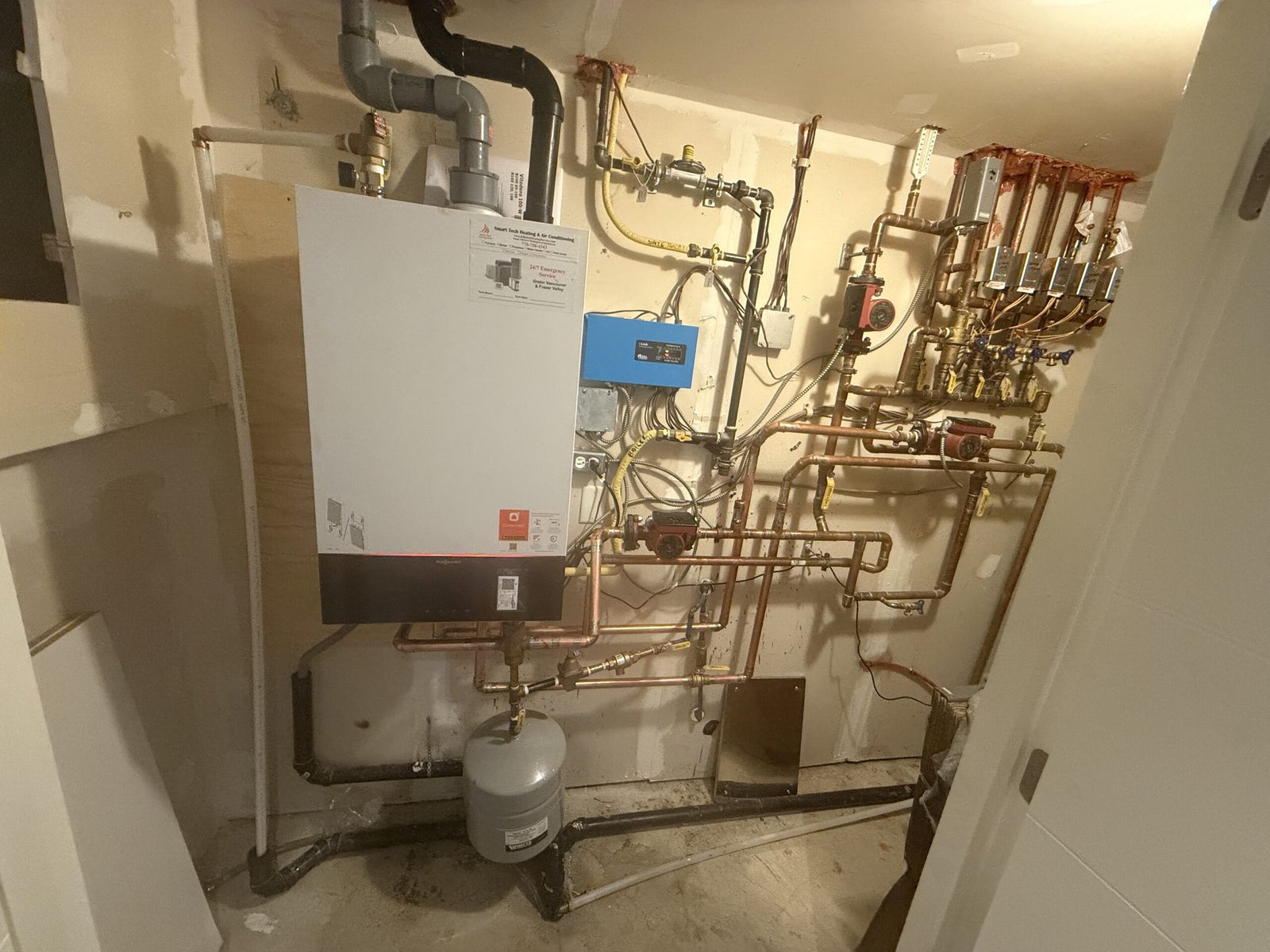

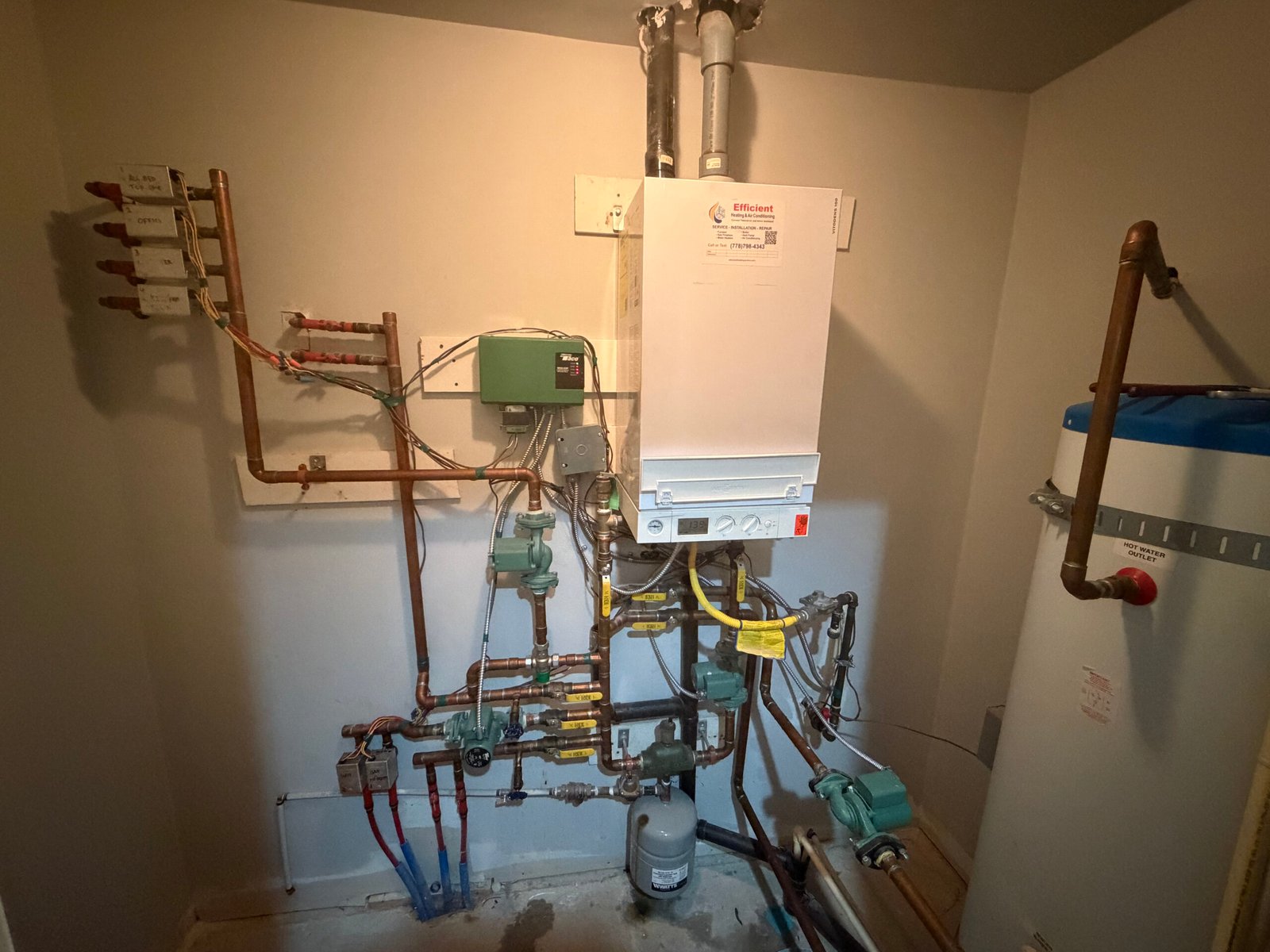

Below are real photos from Viessmann boiler and hot water work completed in the Lower Mainland.
With this guide, you will be properly informed about Viessmann boiler repair, the common problems, the DIY activities you can perform, and the perfect time to call in a certified technician. Making better decisions and safeguarding one of the essential systems in your house is the intention of this guide.
The Reason Why Viessmann Boilers Require Special Care
Viessmann boilers have been built considering the latest technologies and hence are equipped with modern electronics, precision sensors, and components of high efficiency. All this contributes to their reliability but also to their sensitivity. A tiny problem in one sector can lead to the whole system being affected. The moment the boiler begins to lock out or loses efficiency, an experienced technician needs to step in.
Homeowners tend to keep resetting the boiler over and over when they notice a problem. The reset may temporarily restore heat, but it does not solve the underlying issue. These systems are built to be self-protecting. Often, when they lock out, they are just trying to tell you something very important.
Excellent repair of a Viessmann boiler always begins with proper diagnostic measures:
- Looking into your error history
- Evaluating the ignition performance
- Determining gas pressure with load
- Checking venting and air movement
- Verifying pump function
- Checking the condensate system
- Searching for leaks, corrosion, or blockages
A fully qualified technician adheres to this methodology and leverages their expertise to uncover the root cause rather than taking guesses.
You may observe some of the initial signs that your boiler is in need of servicing. Usually, these problems become more serious with time and, therefore, early detection will save you money.
1. F4 Ignition Error
This is one of the most frequently called service reasons. The F4 code indicates that either the burner did not ignite or that there was no flame detected. You might be able to hear your boiler making an attempt to start and then shutting down after a few moments.
The reason may be any of the following:
- Poor ignition
- Dirty or burnt-out electrodes
- Low gas pressure
- Venting restricted
- Buildup in the burner
- Wrong air-to-fuel mixture
It is possible to reset it one time, but if the fault returns, it has to undergo a detailed inspection.
2. FF Control Board Error
This typically indicates a fault in the electronics of the boiler. Occasionally, the boiler loses communication among the components or the board gets overheated. Homeowners should not attempt to troubleshoot control board issues since they entail live electrical parts.
3. Drops in Pressure or Frequent Airlocks
If the pressure in your boiler is continuously dropping:
- There might be a tiny leak
- Automatic air vents might be malfunctioning
- Expansion tank might be waterlogged
- There might be trapped air in the system
A technician would be able to identify the source and re-establish stable operation.
4. Hot Water Supply Inconsistency
If your supply of hot water fluctuates between being warm and cold repeatedly, this indicates that the system is probably having trouble with either flow, sensor readings, or burner modulation. This issue is very common with combi units.
5. Unusual Noises
Kettling, humming, grinding, and tapping sounds are likely coming from:
- Accumulation of scale
- Pump overload
- Air pockets
- Heat exchanger passages being blocked
What to Do Prior to Repair Call
Booking a repair service may be necessary but there are a few things that are safe to try first:
- Confirm that the boiler is receiving power
- Check that the thermostat is set to heat
- Inspect for any leaks
- Record the specific error code
- Perform a single reset
If the boiler is not working properly despite everything being alright, then a technician is required. Frequent resets can lead to component wear or suppress important alerts.
What a Comprehensive Viessmann Boiler Service Entails
The whole procedure of Viessmann boiler repair or service and appointment is much more than just a reset or cleaning.
Your technician will be there to help you with the entire procedure and give a detailed explanation for every step involved.
A good service generally consists of:
- Extinguishing the burner and cleaning it
- Inspecting the heat exchanger
- Gas pressure testing at high and low fire
- Fire exhaust system testing
- Professional tools for combustion analysis
- Cleaning the condensate trap
- Checking for wiring or connection problems
- Testing safety devices
- Reviewing error history
- Checking pump and valve operation
Once these tasks are performed properly, your boiler will operate silently, consume less gas, and have a longer life.
The Importance of Annual Maintenance
A slow death occurs even in the most efficient boiler. Through the process of time, minerals, dust, and other residues accumulate. If you allow the system to remain untouched for long, the consequences will be:
- Longer heating cycles
- Lower efficiency
- More frequent shutdowns
- Higher gas bills
- Component failure risk
Yearly cleaning and servicing keep the heat exchanger clean, the burner preserved, and the system operating at its best. Preventive maintenance can avoid many costly repairs.
Model-Specific Viessmann Boiler Support
Viessmann Boiler Models, Repair Costs and Replacement Options
Efficient Heating Service repairs, services and replaces current and legacy Viessmann gas boilers across Greater Vancouver. We identify the exact model, test the complete operating sequence and explain whether a targeted repair, a full maintenance visit or a planned replacement offers the best value.
Which Viessmann Boiler Models Do We Work On?
We work on the Viessmann boiler families commonly installed in Canadian homes, townhouses and commercial buildings. The model and serial number matter because fault-code definitions, control settings, compatible parts and testing procedures can change between generations.
Vitodens 100-W
B1HE-85, B1HE-120, B1HE-150 and B1HE-199 heat-only boilers, plus B1KE-120 and B1KE-199 combi models that provide space heating and on-demand domestic hot water.
Vitodens 200-W
B2HE-85, B2HE-120, B2HE-150 and B2HE-199, along with earlier B2HB-68, 94, 125, 160 and 199 models and the higher-capacity B2HA-285.
Vitodens 222-F
B2TB-68 and B2TB-125 floor-standing storage-combi boilers. This series has been discontinued in Canada, but many units can still be diagnosed and repaired when compatible parts remain available.
Vitocrossal Boilers
Vitocrossal 300 CU3A-94, 125, 160 and 199, plus Vitocrossal 200 CI2 and CM2 systems used for larger residential and commercial heating loads.
Cascade and Multi-Zone Systems
Vitodens 200-W cascade arrangements, Vitotronic controls, low-loss headers, multiple pumps, mixing valves and indirect hot-water tanks serving multi-zone homes and commercial buildings.
Legacy Viessmann Models
B1HA, B1KA, WB1A, WB2A and WB2B, plus earlier Vitodens 200 and Vitodens 222 generations. Repair depends on boiler condition, fault severity and the availability of the correct model-specific parts.
The rating plate is the final reference for your boiler. When you call, send us a clear photo of the model and serial number, the display and any visible error code. This helps us prepare for the correct generation before arriving.
Model-Specific Diagnosis, Not Error-Code Guessing
A Viessmann fault code identifies where the control detected a problem. It does not always identify the failed part. The same symptom can come from the appliance, the gas supply, the venting system, the hydronic loop or the controls connected to the boiler.
- Current and stored fault history
- Ignition sequence and flame signal
- Gas pressure and combustion readings
- Air intake, venting and condensate drainage
- Supply and return temperatures
- System pressure and expansion-tank operation
- Circulator pumps, zone valves and mixing controls
- Diverter valve and DHW sensors on combi models
- Heat exchanger, burner, electrodes and control wiring
Common Problems We Diagnose
Call for Viessmann boiler repair when the system has no heat, no hot water, recurring lockouts, unstable pressure, a water leak or a fault that returns after a reset.
- Boiler starts but the house stays cold
- Vitodens combi boiler has no hot water
- Pressure drops every day or rises too high
- F4, F6, F7, F8, FF or other recurring fault codes
- Short cycling or frequent burner starts
- Ignition failure or loss of flame
- Water below the boiler or relief-valve discharge
- Cold radiators or in-floor heating zones
- Banging, gurgling, whistling or vibration
How Much Does Viessmann Boiler Repair Cost?
The cost of Viessmann boiler repair in Greater Vancouver depends on the diagnosis, model, age, accessibility, required testing and the price and availability of compatible parts. A dirty flame sensor or blocked condensate trap is a different job from replacing a pump, gas valve, control board or heat-exchanger component. We diagnose the cause first and explain the recommended work before proceeding.
For a faster booking, provide the model number, error code, a photo of the display and a short description of when the problem occurs. We cannot confirm an exact repair price from a fault code alone because the code can have more than one cause. A proper test protects you from paying for a part that does not solve the problem.
Should You Repair or Replace an Older Viessmann Boiler?
Repair often makes sense when the heat exchanger is sound, the failure is isolated, the correct part is available and the rest of the system operates safely. Replacement deserves consideration when breakdowns have become frequent, corrosion is extensive, the heat exchanger is damaged, critical parts are obsolete or the boiler is poorly matched to the building.
We compare the repair with the remaining condition of the boiler, not its age alone. For replacement planning, we also review heat loss, connected radiation, heating-water temperature, zoning, indirect tank or combi hot-water demand, venting and gas supply. This helps determine whether a Vitodens 100-W, Vitodens 200-W, Vitocrossal or another configuration fits the property.
Viessmann Parts, Warranty Information and Service Records
Correct part identification starts with the full model and serial number. A control board, sensor, burner component, pump or gasket that fits one Vitodens generation may not match another. We confirm the part number before recommending replacement and tell you when a compatible component is available, delayed or obsolete. This is especially important for older WB1A, WB2B, B1HA, B1KA, B2HA, B2HB and B2TB boilers.
Warranty coverage can depend on the boiler model, installation type, registration, original installation date and the manufacturer’s current terms. Keep your installation documents and annual service records. If you believe a component may be covered, tell us before parts are ordered so the model-specific warranty information can be checked. We do not replace a part only because an error code names a circuit; we test the related components and operating conditions first.
Local Viessmann Boiler Service Across Greater Vancouver
We provide model-specific service while supporting the city pages customers use to find local help. Homeowners can arrange Viessmann boiler repair in Vancouver, book boiler repair in Burnaby, or request Viessmann boiler diagnostics for a Coquitlam home. Each local visit includes testing of the boiler and the connected hydronic system so we can distinguish an appliance fault from a circulation, control or zoning problem.
Our service area also includes boiler service and repair in Surrey, Richmond boiler repair and maintenance, boiler repair in North Vancouver, West Vancouver, New Westminster, Port Coquitlam, Port Moody, Maple Ridge and Langley. Call with your city and boiler details, and we will provide the earliest available appointment.
Questions Customers Ask Before Booking Viessmann Service
Clear answers help you decide what to do next and what information to send before the appointment.
Can you repair an older or discontinued Viessmann boiler?
Often, yes. We first inspect the boiler condition and identify the exact part number. Older B1HA, B1KA, WB1A, WB2B, B2HA, B2HB and B2TB systems may remain repairable when the heat exchanger is sound and compatible parts are available.
Why does my Viessmann boiler keep losing pressure?
Possible causes include a system leak, expansion-tank problem, pressure-relief valve discharge, automatic-fill fault or trapped air. Repeatedly adding water may hide the symptom without correcting the cause. Arrange testing when the pressure continues to fall.
Why do I have heat but no hot water?
On a B1KE combi boiler, the issue may involve the flow signal, diverter valve, DHW sensor, control settings or restricted water flow. On a boiler with an indirect tank, we also test the tank sensor, pump, zone control and priority demand.
Is it safe to keep resetting a locked-out boiler?
No. One reset may clear a temporary interruption, but repeated lockouts show that the boiler continues to detect a fault. Record the displayed code and stop resetting the unit. A technician should test the ignition, combustion, venting, pressure and related controls.
Do you offer same-day Viessmann boiler repair?
Same-day availability depends on the schedule, location, diagnosis and parts required. Call as early as possible with the model and fault information. We will give you the earliest available appointment and explain what to do safely while you wait.
How often should a Viessmann boiler be serviced?
Annual service is a practical schedule for a gas boiler. The visit should include inspection, cleaning where required, combustion and safety testing, condensate checks and a review of the operating history. Keep the service record with your boiler documents and warranty information.
Can you quote a repair from the error code?
The code helps us prepare, but it does not prove which part failed. We can discuss likely diagnostic steps before the visit. An exact repair recommendation requires testing the boiler and confirming the root cause.
What should I send when requesting service?
Send your city, the boiler model and serial number, the error code, when the issue started and photos of the boiler and display. Tell us whether you have no heat, no hot water, a leak, unusual noise or repeated pressure loss.
LICENSED CLASS B GAS FITTER · 10+ YEARS OF HANDS-ON EXPERIENCE
Get Clear Answers About Your Viessmann Boiler
Call with your Viessmann model number, displayed fault code and a description of the problem. We will help you book the earliest available visit and prepare for model-specific testing.
Local Viessmann Boiler Repair Jobs—Real Examples
Issues arise similarly for homeowners in Burnaby, Vancouver, Coquitlam, Surrey, and so on. A few examples from actual service calls illustrate this point:
1. F4 Error After the Long Summer Shutdown
A Burnaby homeowner turned the heating system on for the first cold day of the year. The boiler was locked out with an F4 code. The ignition electrode had worn out and there was buildup at the burner plate. After cleaning the burner, adjusting the gas pressure, and replacing the electrode, the system started to run quietly.
2. No Hot Water During Peak Demand
A Coquitlam family was losing the hot water supply in the evening hours regularly. The problem was traced to a faulty flow sensor. Replacing the sensor eliminated the temperature fluctuations.
3. Daily Pressure Dropping Each Morning
A condo in Vancouver experienced low pressure every day. The cause was traced to a small leak in the copper pipe and a faulty expansion tank. After the repairs, the pressure was stable.
Viessmann Boiler Parts We Commonly Repair or Replace
Most Viessmann boiler repair calls trace back to a small set of components that handle ignition, safety checks, and modulation. When one of these parts fails, the boiler will usually display a specific fault code instead of operating normally.
-
Control boards and communication modules
(often involved when the boiler displays an FF error code) - Gas valves and modulation assemblies
-
Igniters and flame detection components
(commonly linked to F4 error codes when ignition fails) - Primary and secondary heat exchangers
- Circulator pumps and pump control interfaces
- Pressure sensors and flow switches
- Expansion tanks and pressure relief valves
- Condensate traps, siphons, and drain assemblies
- Fan motors and air pressure switches
- DHW diverter valves on combi Viessmann boilers
- Burner assemblies, seals, and gaskets
- Wiring harnesses, grounding points, and safety interlocks
Viessmann Boiler Repair Checklist Used During Diagnostics
Fault codes like FF or F4 point technicians in the right direction, but they do not confirm the failed part on their own. A proper Viessmann boiler repair always follows a verification checklist before any component is replaced.
- Read and confirm active and stored fault codes from the control system
- Verify power supply, grounding, and control board communication when FF codes appear
- Check ignition sequence, flame signal strength, and shutdown timing on F4-related faults
- Confirm gas pressure stability under load and during ignition
- Test temperature and pressure sensors for drift or intermittent failure
- Inspect heat exchanger condition for restriction, scaling, or corrosion
- Confirm pump operation, system flow, and pressure consistency
- Inspect condensate drainage for blockages or freeze-related issues
- Verify final operation in both heating and domestic hot water modes
This diagnostic-first approach prevents repeat lockouts, protects expensive Viessmann components, and ensures the repair addresses the root cause rather than just clearing the error code.
A Clear Path for Any Viessmann Boiler Problem
Need Viessmann Boiler Repair in the Lower Mainland?
Serving Burnaby, Vancouver, Coquitlam, Surrey, Richmond, Maple Ridge, New Westminster and surrounding areas.
